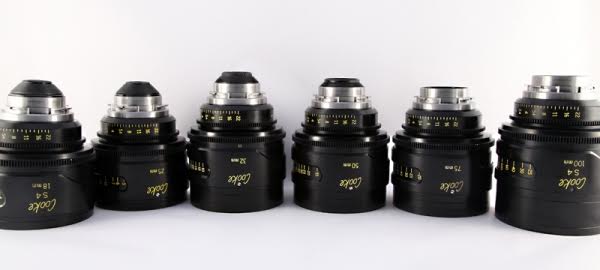

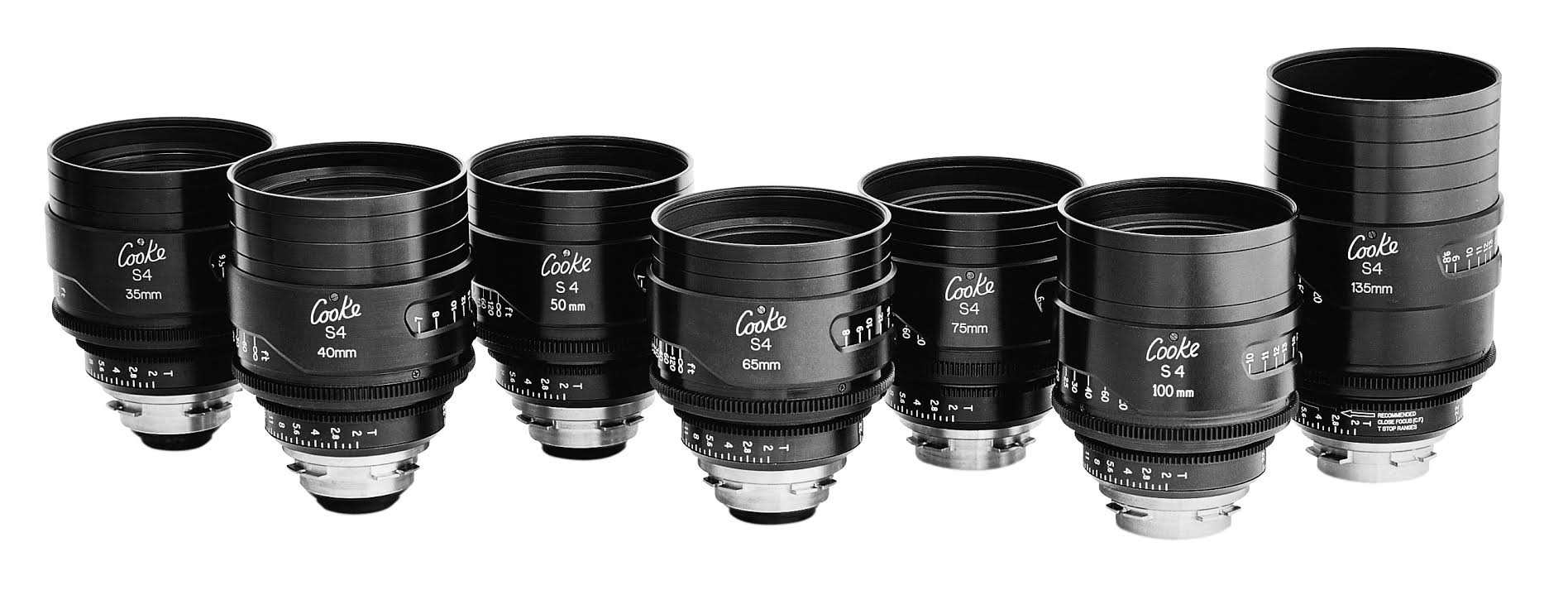

Cooke S4
Resimler
Maximum Format Cover: 30mm diameter (Super 35mm format)
Focus Scales: Two opposing focus scales - metric or footage. Scales marked from infinity to MOD.
Focus Drive Gear: 140 teeth 0.8 metric module x 6.0mm wide x 98mm from image plane. 140 teeth 0.8 module x 6.0mm wide x 99mm from image plane (300mm)
Iris Scales: Two opposing linear T-scales - whole and third stops marked.
Iris Drive Gear: 114 teeth 0.8 metric module x 4.0mm wide 84mm from image plane. 134 teeth 0.8 metric module x 2.5mm wide x 80.5mm from image plane (300mm).
Iris Drive Gear for LDS Lens: 136 teeth, 0.8 metric module x 6.0mm x 79.5mm from image plane.
Internal Front Fitting Filter: Internal thread for filter adapter M105 x 0.75 pitch (12mm and 14mm not applicable). M120 x 1.0 pitch (150mm). M131 x 1.0 pitch (180mm, 300mm)
